8mm and Super 8mm Film to Digital Media



There are basically two ways to convert from film to a digital format.

Either you can project the film as normal, and film it with some kind of video camera, or you can use what's known as a telecine.  A telecine scans each frame of the film individually and assembles tem into a movie. This produces a much superior result to simply filming the projected film.

An industry ptofessional grade telecine, such as the Rank-Cintel C-Reality, designed for 35mm Holywood film scanning, would cost you in the region of £400,000, secondhand. At one time (1994-1996) I worked for Cintel in Ware, Herts and picked up a few tips.

The results can, for example, be uploaded to youtube, and/or written to a standard DVD.

We can convert 8mm and Super 8mm cine film to any digital format you want (we should also be able to do 9.5mm in the next few months).

We do not have the facilities to convert cine soundtracks at this time, but I'm looking into it. (See Sound).

If you want to add a soundtrack, you can supply one on CD, cassette tape, or whatever media takes your fancy. Generally speaking we don't recommend a musical soundtrack because they tend to date terribly quickly. A standard prijector "click, click, click ..." is quite popular.

Strobing!

When one videos a projected cine film, one is usually recording at either 25 or  30 frames per second. Cine, however, is filmed and projected at a  variety of frame rates. The important thing is that the rate at which  the cine is filmed and projected differs from the rate at which it is  videoed at. Now, as you know, a cine film is made up of individual  frames. Each frame is separated from other frames by a frame border  - basically a black line. When you film the projected cine, the camera  picks this black line up and interprets it as a momentary dulling of the  picture. The net effect is a perceptible light/dark flashing effect that  we call "strobing".

Scanning each frame individually completely avoids this problem because only frames are scanned, not inter-frame borders.

Dull Edges!

When you project a cine film, the film is illuminated by a standard bulb. The light produced by the bulb tends to be circular, and the brightness level falls  off the further you get from the centre of illumination. This is  illustrated below:

Illumination

The adjustable LED light source of some telecines avoids this problem, resulting in a high quality transfer

Frame Cropping!

Basically this problem is avoidable when videoing a projected cine film,  but it's tricky to do well. The nature of the problem is that the frame  size of your video camera differs from the frame size of the projected  movie. Well, when I say "frame size," what I actually mean is "aspect  ratio". So what's the aspect ratio? And why quibble?

Essentially the "aspect ratio" is the ratio of image height to image width. Cine is generally 4:3, most films and TV these days is 16:9 The yellow rectangle illustrates the frame size and aspect ratio of most PAL digital cameras - it's a bit different for NTSC, or if you're using widescreen format, but the principle is the same.

PAL Aspect Ratio

In order to make sure that you video the whole projected cine image, you need to position the camera at a distance from the screen so that with the appropriate zoom setting you get the entire image without loosing either the vertical or horizontal edges. And then, of course you run into other problems to do with illumination levels, camera angle and so on. As I say, it can be done but it's damn fiddley and quite hard to get right.

And these are some (by no means all) of the reasons why videoing projected cine film and then converting to whatever digital format is a bad idea, if you want a good result.

The Telecine Approach

TelecineWolverine 8mm Telecine

At ComputationalDemonology we use the "Telecine Approach," which means that we avoid all of the problems listed, and quite a few others, giving you the best possible cine conversion quality it's possible to get.

As noted above, a telecine scans each frame of your cine film individually, with linear illumination giving excellent reproduction, and incidentally perfect frame rate conversion; remember cine is projected at around 18 frames per second, where as PAL DVDs play at 25fps.

The frame rate problem is actually quite interesting (if you're that way inclined).

The Downside

Telecine operations are relatively slow; the machines we operate can handle 6 frames per second, and we prefer to run then at 4 fps to ensure the highest quality capture. That means our conversions take longer that simply filming the projected cine and converting from there.

Prices

We charge the same for standard 8mm and super 8mm cine conversions. Detailed prices are given below.

The basic price is £35 per hour + £5 per reel. The reel charge is basically a species of self-defence. It's a real hassle to set up a telecine, and frankly I'd really rather not do it every 8 minutes.

The moral of this is that you should - where possible - splice together your 3" reels into 5 " reels. We may be able to do this for you (for a fee, alas) in the not too distant future. The upside is that the fee will be less than the reel charge.

But PLEASE DO NOT SPLICE YOU REELS TOGETHER if you are unpracticed at that kind of thing. I know this will cost you more but unless you know what you're doing this can lead to an inferior result, and might damage one of my telecines.

The table below lists reel sizes and approximate running times. This should enable you to calculate the total cost of converting your cine films without too much hassle. But you may need a ruler!

  Reel Size Length (feet) Duration
standard 8 3" 50 4 mins
  5" 200 16 mins
  7" 400 32 mins

Super 8 3" 50 3 mins
  5" 200 13 mins
  7" 400 27 mins

Significant discounts are available for quantity. Prices include a menu of up to 6 items. If you have a photograph you'd like to use as the menu background, feel free to enclose it (no extra charge).

Film Cleaning

You've got to be careful with this! Not all cleaning solutions or cleaning methods are particularly friendly to old film. We use an ultrasonic cleaner, which removes a lot of grime without forceful manual intervention. The results are generally very good

How long does it take?

"Depends". Generally speaking you're looking at 1 to 3 weeks, but this depends on volume. One or two 5 " or 7" reels might be out next day, but 100 three inch reels would take longer. Possibly a lot longer. Please phone +44-(0)-7749 988913, or use the contact form for a more explicit quotation.

Ordering.

When you send us you cine films please try to bear the following in mind: It's not required but will make your job go more smoothly:

  1. Group rolls by common density (dark, light, etc)
  2. Group by common film types (K40, B&W. etc)
  3. Group by camera (each has a different frameline placement)
  4. Group by special needs (horizon correction, cropping, etc)
  5. Group by common speed (15, 18, 24, 30fps)

Rush Service

"Rush Service" means next day, or the day after, delivery of the finished product.

A "Rush Service" is available, but it's expensive. The exact charge varies a bit, but generally speaking where the rush service is possible (it may not be - availability depends on all kinds of things), you're looking at at least 100% surcharge on the basic fee.

Splicing

!I will splice up to 6 film breaks free of charge, more than that comes in at £2.50 a splice.

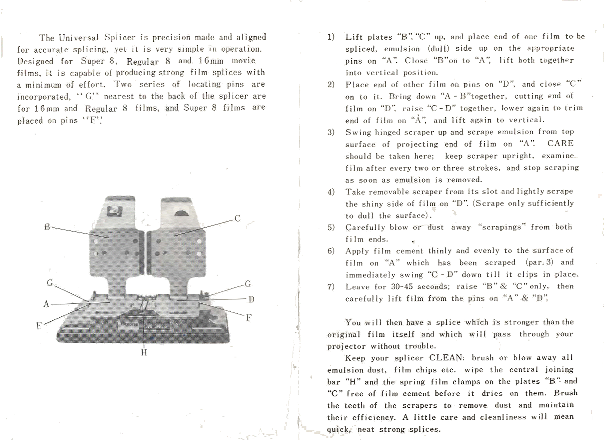

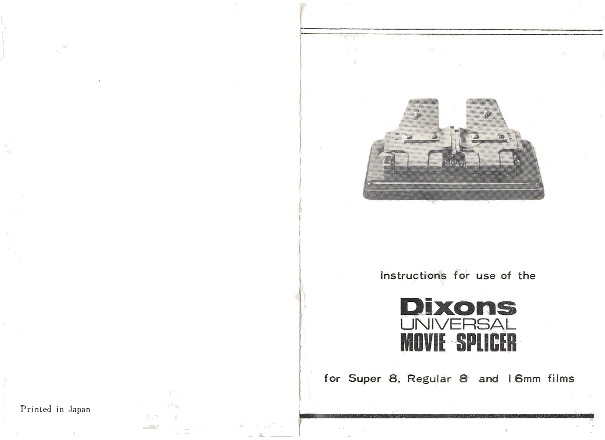

A film splicer!

More film splicer
